Mini Dials

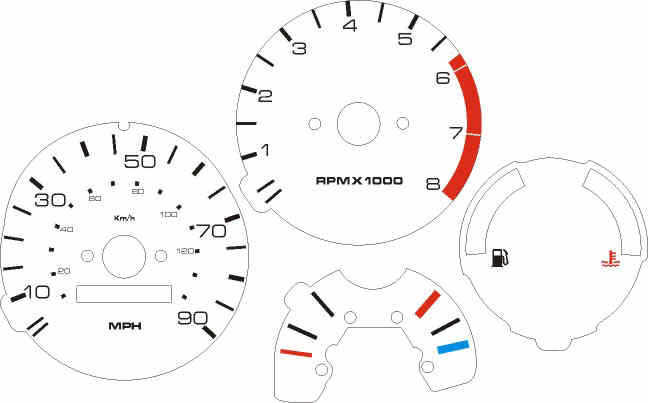

Here is the template that been produced for the Old Mini, it is suitable for the 2 clock or 3 clock dash with 90mph Speedo.  We are also looking into producing for those Mini with 110 mph speedo as well, if you have one please let us know!!!!

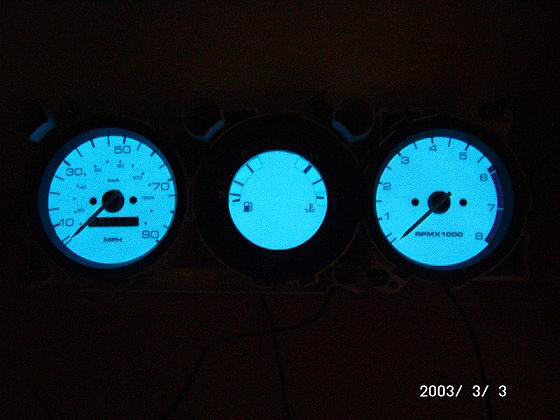

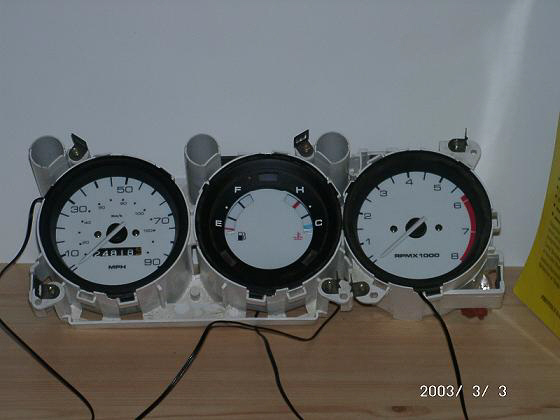

Here is the a set of Mini 3 clocks lay out with 90mph fitted with out indiglo dials.  (Click image to enlarge).

Attention

Due to the design of the Mini Clocks, there is an extra precaution have to be taken.  If this extra precaution is not taken in conjunction with other procedures mentioned then warranty is void.

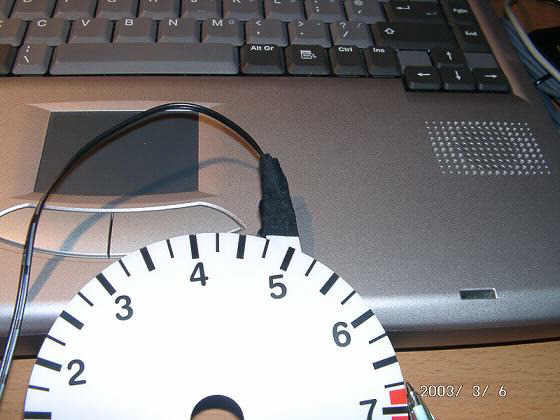

Where the wires attached to the dials (black insulation tape) as you can see in the following picture:-

This part can only be partially bend piror to fitment.  When bending this part be extra careful.  Feel it first, where the wire part can be bended, if you feel that it the dial face is attached then do not bend.  Move back a little towards the wire part and feel again.

Above:

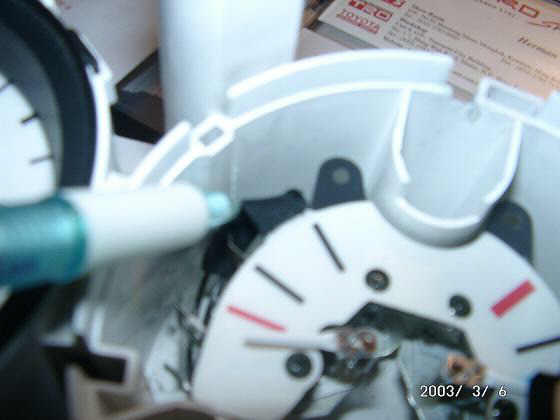

(Left): Rev counter and Speedo, wires come out the gap between the pod and the plastic clip on ring.

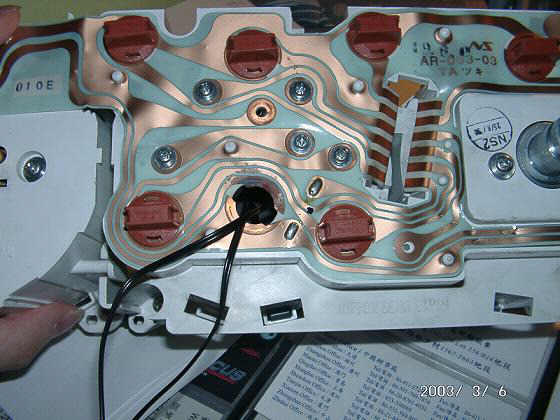

(Right): Center pod face and fuel/temp gauge wires come out from the back.  Remove background lighting bulb to allow wires to come through.

Removing background lighting bulb will avoid orange light shine on to the dials causes colour difference.
